VLink is a high-performance C++17 communication middleware for autonomous driving and embodied intelligence, positioned as a full-scenario alternative to ROS 2. A single type-safe API covers intra-process, shared-memory, automotive-Ethernet, and cross-machine communication, reducing a backend change to editing a URL prefix while application code stays untouched.

The current release supports 12 transport backends, 14 serialization formats, 3 communication models with 6 core primitives, plus security, recording/playback, service discovery, 9 CLI tools, and Foxglove / Rerun visualization bridges.

🧩 Core Abstraction: the URL as a Communication Contract

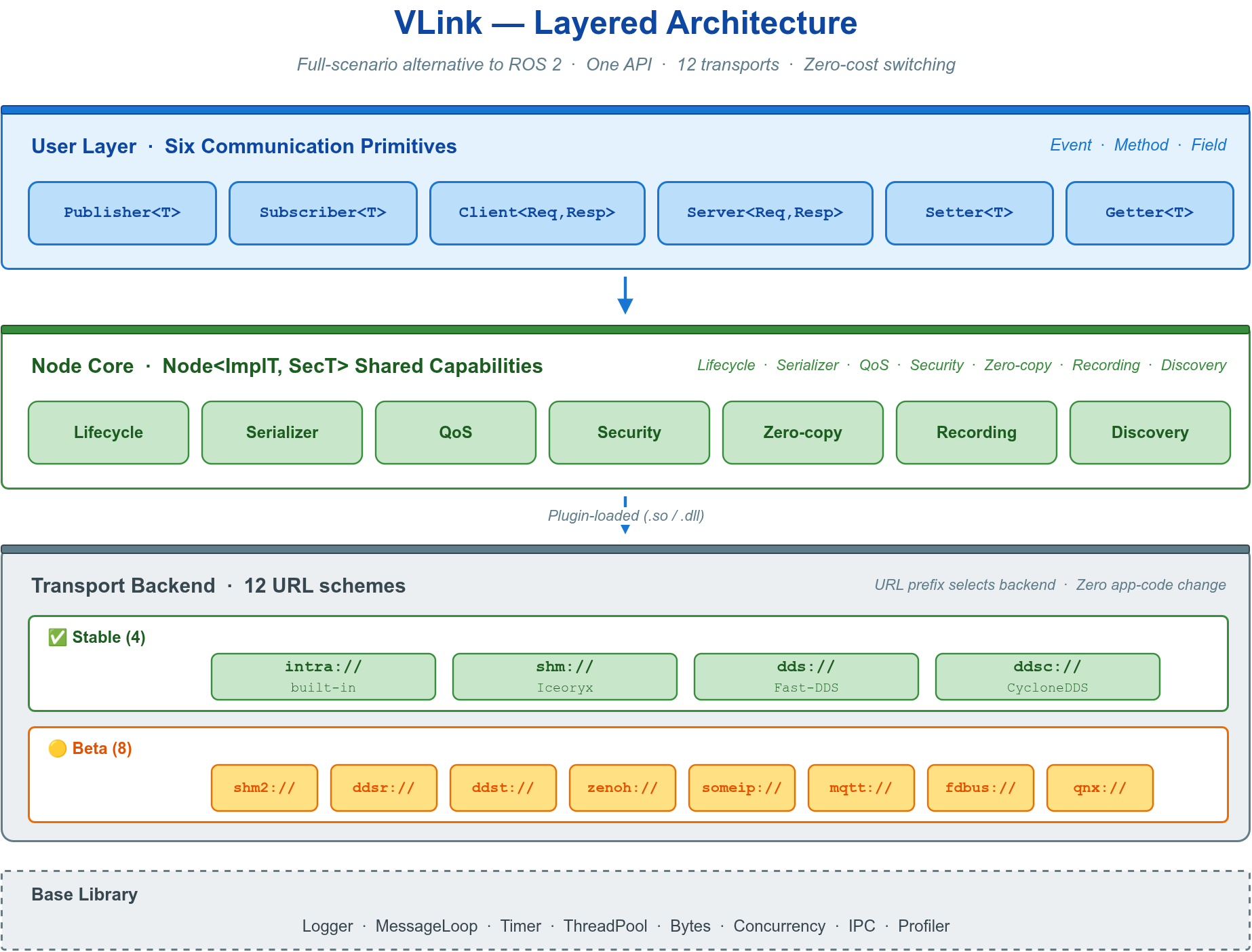

VLink's entire design centers on one abstraction: a communication is defined by a model, a URL, and a core method; the backend is an implementation detail of the URL prefix and is invisible to application logic.

<scheme>://<topic_name>[?params]

The scheme selects the backend; switching backends requires only changing the prefix, leaving application code unchanged:

vlink::Publisher<Imu> pub("intra://sensor/imu");  // intra-process
vlink::Publisher<Imu> pub("shm://sensor/imu");    // same-host zero-copy
vlink::Publisher<Imu> pub("dds://sensor/imu");    // cross-machine

This yields three engineering benefits: application logic is decoupled from transport; end-to-end tests run in a single process over intra://; deployment topology is determined by configuration rather than source.

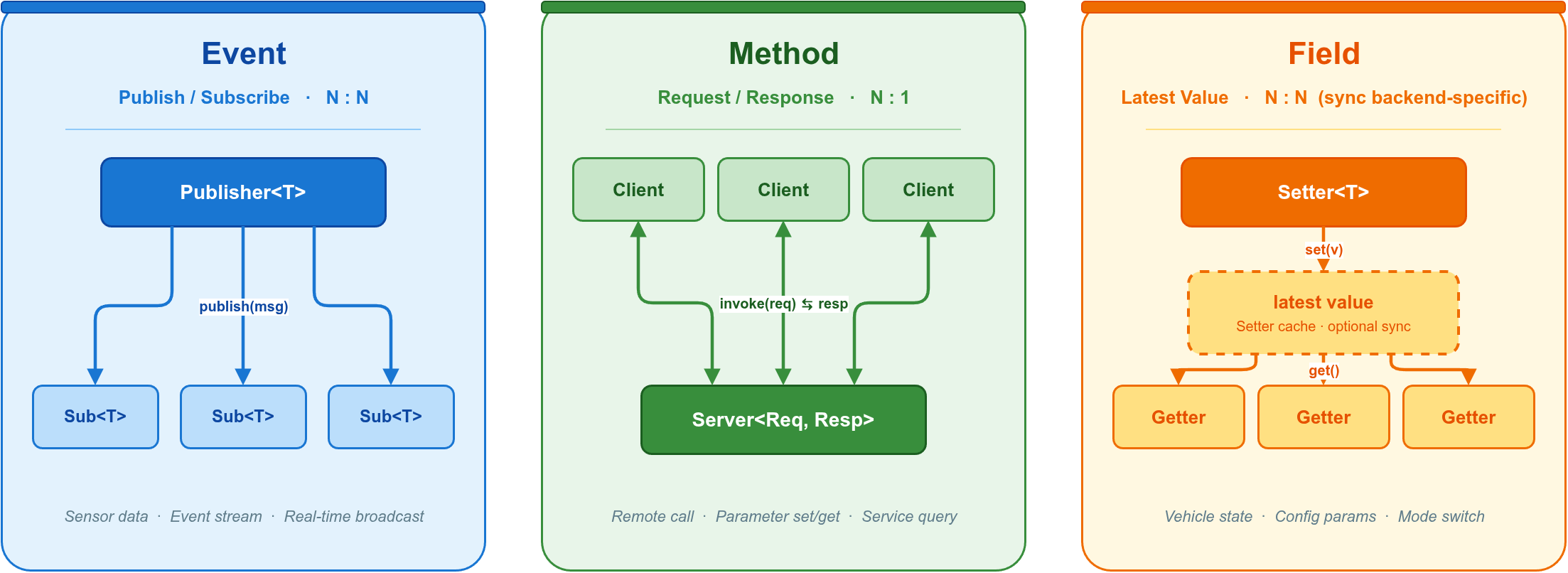

📡 Communication Models

VLink provides three communication models with six core primitives, chosen by communication semantics independent of the backend.

Event — publish / subscribe

vlink::Publisher<Imu> publisher("dds://sensor/imu");
publisher.publish(msg);

vlink::Subscriber<Imu> subscriber("dds://sensor/imu");
subscriber.listen([](const Imu& msg) { process(msg); });

Method — request / response

vlink::Server<Req, Resp> server("dds://calc/add");
server.listen([](const Req& req, Resp& resp) { resp.set_sum(req.left() + req.right()); });

vlink::Client<Req, Resp> client("dds://calc/add");
if (auto resp = client.invoke(req, std::chrono::seconds(3))) { use(*resp); }

Field — state synchronization

vlink::Setter<Status> setter("shm://vehicle/status");
setter.set(status);

vlink::Getter<Status> getter("shm://vehicle/status");
getter.listen([](const Status& s) { use(s); });

Model	Semantics	Primitives	Typical use
Event	publish/subscribe	`Publisher<T>` / `Subscriber<T>`	sensor streams, perception broadcast
Method	request/response	`Client<Req,Resp>` / `Server<Req,Resp>`	map queries, parameter access, services
Field	state sync	`Setter<T>` / `Getter<T>`	vehicle state, configuration, calibration

🚌 Transport Backends

Scheme	Underlying	Scope	Zero-copy	Status
`intra://`	built-in queue	intra-process	yes	stable
`shm://`	Iceoryx	same-host	yes	stable
`dds://`	Fast-DDS	cross-machine	no	stable
`ddsc://`	CycloneDDS	cross-machine	no	stable
`shm2://`	Iceoryx2	same-host	yes	beta
`ddsr://`	RTI Connext	cross-machine	no	beta
`ddst://`	domestic DDS	cross-machine	no	beta
`zenoh://`	Zenoh	cross-machine / edge	no	beta
`someip://`	vsomeip	automotive Ethernet	no	beta
`mqtt://`	Paho MQTT	cloud	no	beta
`fdbus://`	FDBus	same-host	no	beta
`qnx://`	QNX IPC	same-host (QNX)	no	beta

URL syntax, query parameters, and per-backend notes are in Transport Backends and URL.

🚀 Getting Started

Building with VKit is recommended. VKit integrates multi-repository source fetching, cross-platform toolchain distribution, layered component orchestration, and packaging into a single pipeline that builds VLink with identical commands on Linux / QNX / Android / macOS / Windows, depending only on Bash and CMake.

git clone https://github.com/thun-res/vkit.git && cd vkit
make import_full      # fetch middleware sources: vmsgs and vlink
make                  # build, deploy, and produce a runtime package

VLink can also be integrated into an existing CMake project:

find_package(vlink REQUIRED COMPONENTS shm dds)

target_link_libraries(my_app PRIVATE vlink::vlink vlink::shm vlink::dds)

Full build, cross-compilation, and integration details are in Build and Integration.

🧰 Ecosystem

VLink comprises three coordinated repositories:

Repository	Role	URL
VLink	the communication middleware (this repository)	https://github.com/thun-res/vlink
VKit	cross-platform build and release toolkit	https://github.com/thun-res/vkit
VMsgs	standard message definitions for perception / planning / localization / map, etc. (Protobuf / FlatBuffers)	https://github.com/thun-res/vmsgs

📚 Documentation

📄 VLink Whitepaper — a full academic treatment of industry background, technical argumentation, comparison, and performance analysis.

The following is a 16-part learning path, best read in order.

Introduction

Document	Content
0. Overview and Design Philosophy	positioning, core abstraction (URL as contract), architecture, capabilities
1. Getting Started	VKit build, first program, examples guide

Core

Document	Content
2. Communication Models	node base and the Event / Method / Field models
3. Serialization	type-driven automatic serialization

Transport and Capabilities

Document	Content
4. Transport and URL	12 backends and URL specification
5. QoS	quality-of-service policies and profiles
6. Zero-Copy	loan interface and perception data containers
7. Security	message-level encryption and key management
8. Base Library	Logger / MessageLoop / Timer / ThreadPool, etc.
9. Recording and Playback	Bag / MCAP formats and API

Tools and Operations

Document	Content
10. CLI Tools	9 command-line tools
11. Visualization (Viewer / WebViz)	desktop Viewer and Foxglove / Rerun bridges
12. Discovery and Proxy Monitoring	topology discovery and cross-segment observation

Integration and Reference

Document	Content
13. Integration and Extension	C API, plugin system, environment variables
14. Cheatsheet and Troubleshooting	single-page API/URL/QoS/CLI reference and symptom index
15. Testing and Contributing	test framework and contribution workflow

📊 Project Reports

VLink automatically runs benchmarks and coverage analysis on every release and publishes the full reports.

Report	Online report	Wiki summary
🚀 Benchmarks (vlink-bench)	View online	Benchmarks
🧪 Code coverage	View online	Coverage

💻 Platform Support

Platform	Architecture	Compiler	Status
Linux	x86_64 / aarch64	GCC 9+ / Clang 10+	stable
QNX 7.x / 8.x	aarch64 / x86_64	QCC (QNX SDP)	stable
Android	aarch64 / x86_64	NDK Clang r25+	stable
Windows 10+	x86_64	MSVC 2019+ / MinGW	stable
macOS 10.15+	x86_64 / arm64	AppleClang 12+	beta

📁 Project Layout

vlink/
├── include/vlink/   public headers (6 primitives + base library + extensions + zero-copy)
├── src/             core library implementation
├── modules/         12 transport backend implementations
├── cli/             9 command-line tools
├── proxy/           ProxyServer / ProxyAPI
├── viewer/          Qt desktop visualization tools
├── webviz/          Foxglove / Rerun bridges
├── c_api/           C API (for Python / Rust FFI)
├── python_api/      nanobind Python bindings
├── examples/        usage examples (14 categories, 29 projects)
├── test/            test suite
├── doc/             documentation
└── CMakeLists.txt   top-level CMake entry

🤝 Contributing

VLink is maintained by Thun Lu. PRs, issues, and documentation improvements are welcome. Please read the Contributing guide before submitting.

📜 License

[Apache License 2.0](LICENSE) — free for commercial use.
